In FDM 3D printing, layer height plays a significant role in determining the overall quality, speed, and strength of your printed objects. Whether you’re working on a detailed model or a functional part, adjusting the layer height can dramatically impact your final results. This comprehensive guide breaks down how different layer heights affect print resolution, speed, and mechanical properties, providing practical advice on how to choose the right layer height for your projects.

1. What is Layer Height in 3D Printing?
Layer height, also known as “resolution” in 3D printing, refers to the thickness of each layer that is deposited during the print process. Measured in millimeters (mm), common layer heights range from 0.05mm for ultra-fine prints to 0.4mm or more for rapid prototyping. Smaller layer heights produce more detailed prints, while larger layer heights can significantly reduce print time.

2. How Layer Height Affects Print Quality

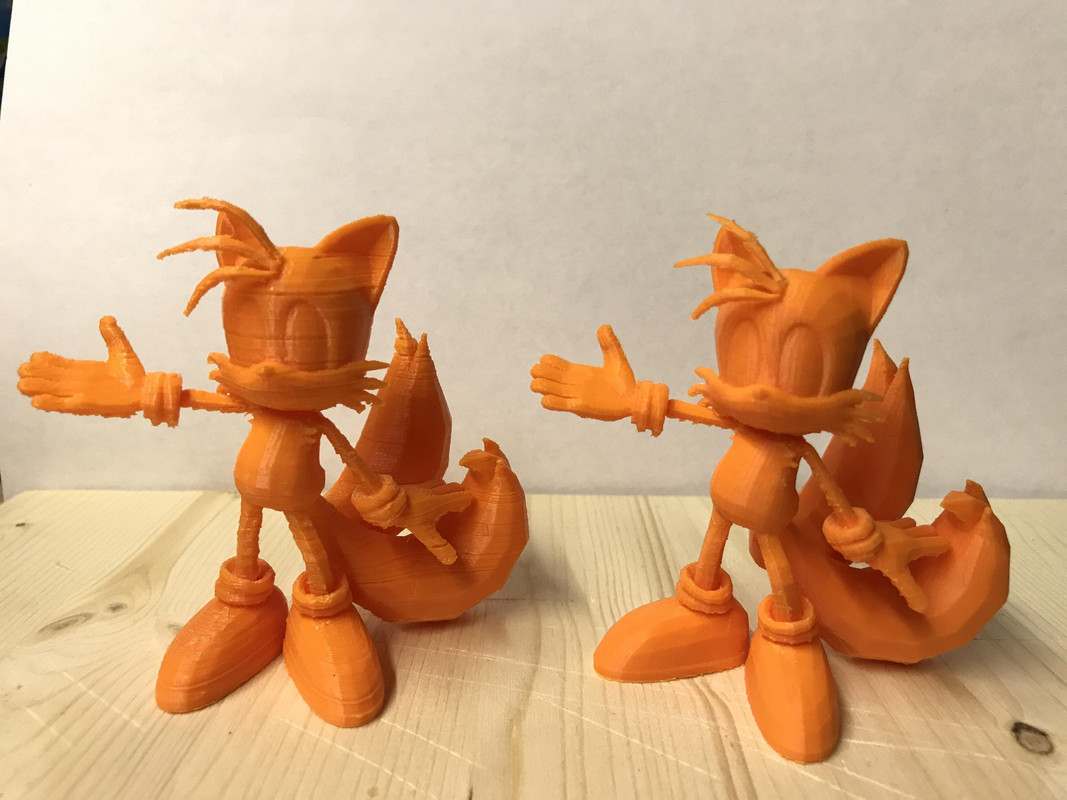

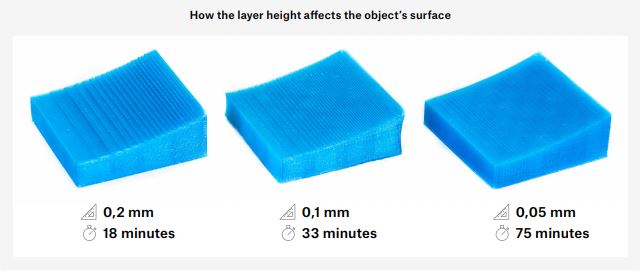

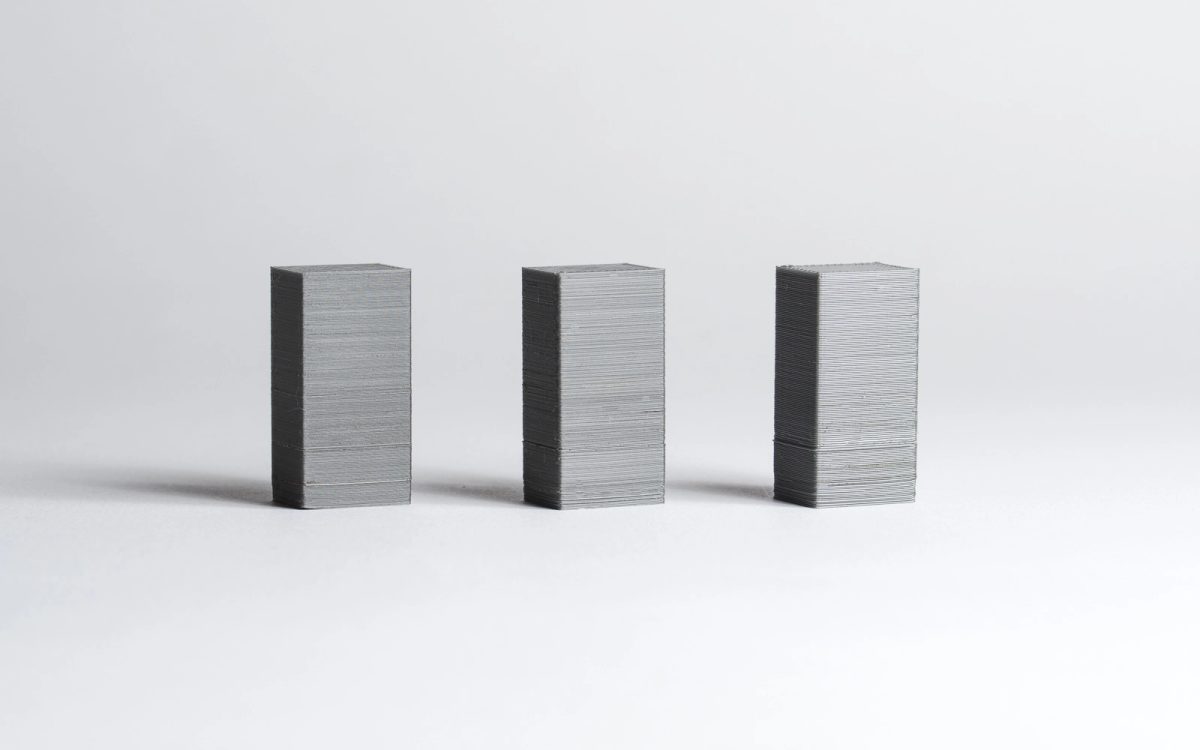

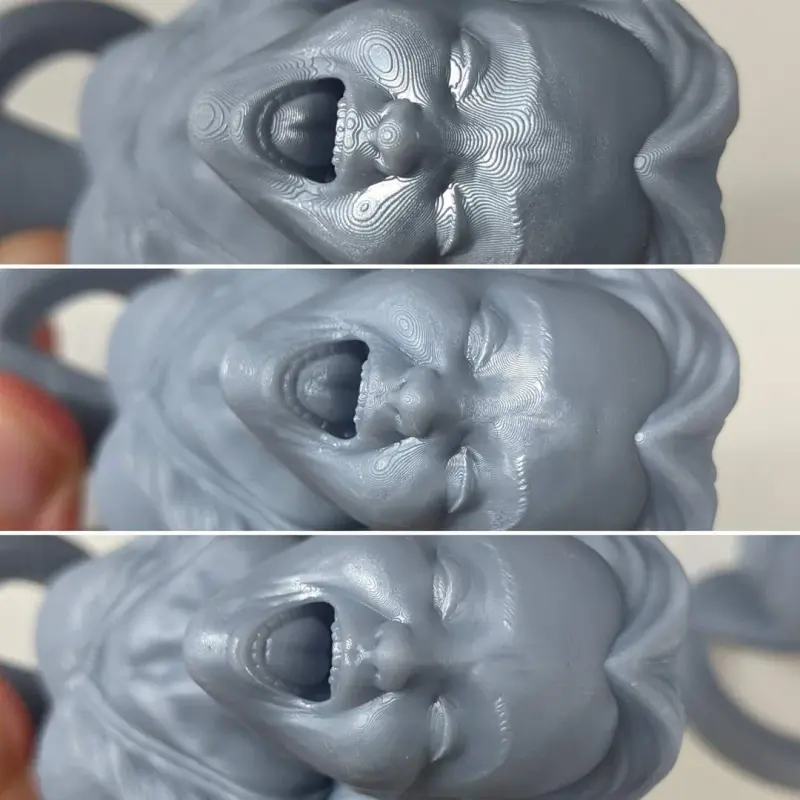

Fine vs. Coarse Layer Heights: Detail and Surface Finish
Smaller layer heights (e.g., 0.1mm or less) offer greater detail and a smoother surface finish because each layer blends more seamlessly with the next. This is especially important for prints with intricate designs, curved surfaces, or objects where visual appearance matters. Larger layer heights (e.g., 0.3mm or more) result in more visible “layer lines,” but these prints are completed faster and may still be suitable for functional parts where aesthetics are less critical.
Pros of Fine Layer Heights (0.1mm or less):
- Exceptional detail and smooth surface finish
- Perfect for models, sculptures, and high-precision prototypes
Cons of Fine Layer Heights:
- Longer print times
- Increased chance of failure if the nozzle or print bed isn’t calibrated correctly
Pros of Coarse Layer Heights (0.3mm or more):
- Faster print times, ideal for rapid prototyping
- Suitable for functional parts where appearance isn’t as important
Cons of Coarse Layer Heights:
- Visible layer lines, rougher surface finish
- Reduced detail in curved or intricate areas
Real-World Examples of Layer Height and Print Quality
A designer creating a finely detailed architectural model chose a 0.1mm layer height to ensure the building’s intricate features were accurately captured. The result was a highly detailed and smooth model, but the print time was significantly longer. On the other hand, a maker printing a simple mechanical part used a 0.3mm layer height to save time without sacrificing functionality, leading to a much faster print.

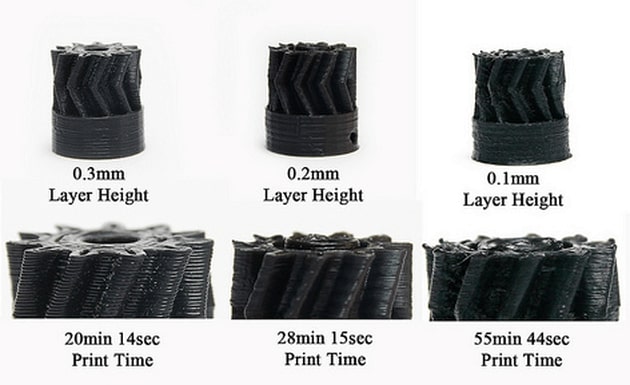

3. How Layer Height Affects Print Speed
Thicker Layers for Faster Prints

When using thicker layers (e.g., 0.3mm or 0.4mm), the printer deposits more material with each pass, which allows the print to finish more quickly. This is ideal for large-scale prints or when prototyping, where speed is more important than fine details. However, the trade-off is reduced surface smoothness and less intricate detail.
Balancing Speed and Quality

For many projects, the challenge lies in finding the right balance between print speed and quality. A common compromise is using a mid-range layer height, such as 0.2mm, which provides a balance between decent surface quality and reasonable print time. This is particularly useful when printing functional parts that don’t require a flawless surface finish but still need a respectable level of detail.
4. How Layer Height Affects Print Strength
Impact of Layer Height on Part Strength
Layer height also impacts the mechanical strength of the printed object. Thicker layers tend to bond better, making parts slightly stronger in the Z-axis (vertical direction). However, the overall part strength also depends on other factors, such as infill density, layer bonding, and material type. Thinner layers can sometimes lead to weaker inter-layer adhesion, which may reduce part durability in high-stress applications.
Thicker Layers (0.3mm or more):
- Stronger bond between layers, increasing Z-axis strength
- Better for functional parts requiring durability and strength
Thinner Layers (0.1mm or less):
- Potential for weaker layer adhesion, especially if the printer isn’t perfectly calibrated
- More suitable for detailed models or parts with low-stress applications
Real-World Examples of Layer Height and Strength
A user printing a bracket for a heavy-duty application opted for a 0.3mm layer height to ensure the part’s durability. The thicker layers created a strong bond, making the bracket capable of withstanding stress. Conversely, an artist printing a decorative vase chose a 0.1mm layer height to enhance the visual appeal, knowing that strength wasn’t a critical concern.
5. Choosing the Right Layer Height for Your Project
Ideal Layer Heights for Different Materials
Different filament materials perform better with specific layer heights. For example, PLA prints well at finer layer heights (0.1-0.2mm) due to its rigidity, while TPU, a flexible material, benefits from thicker layers (0.3mm or more) for improved bonding and flexibility.
- PLA: 0.1mm to 0.2mm for fine details
- ABS: 0.2mm to 0.3mm for a balance of strength and detail
- TPU: 0.3mm or more for better bonding and flexibility
Customizing Layer Heights for Specific Models
For complex models, varying the layer height throughout the print can optimize both quality and speed. Some slicer software allows users to use a finer layer height for detailed sections and a coarser height for less critical areas, maximizing efficiency while maintaining quality where it matters most.
6. Best Practices for Optimizing Layer Height

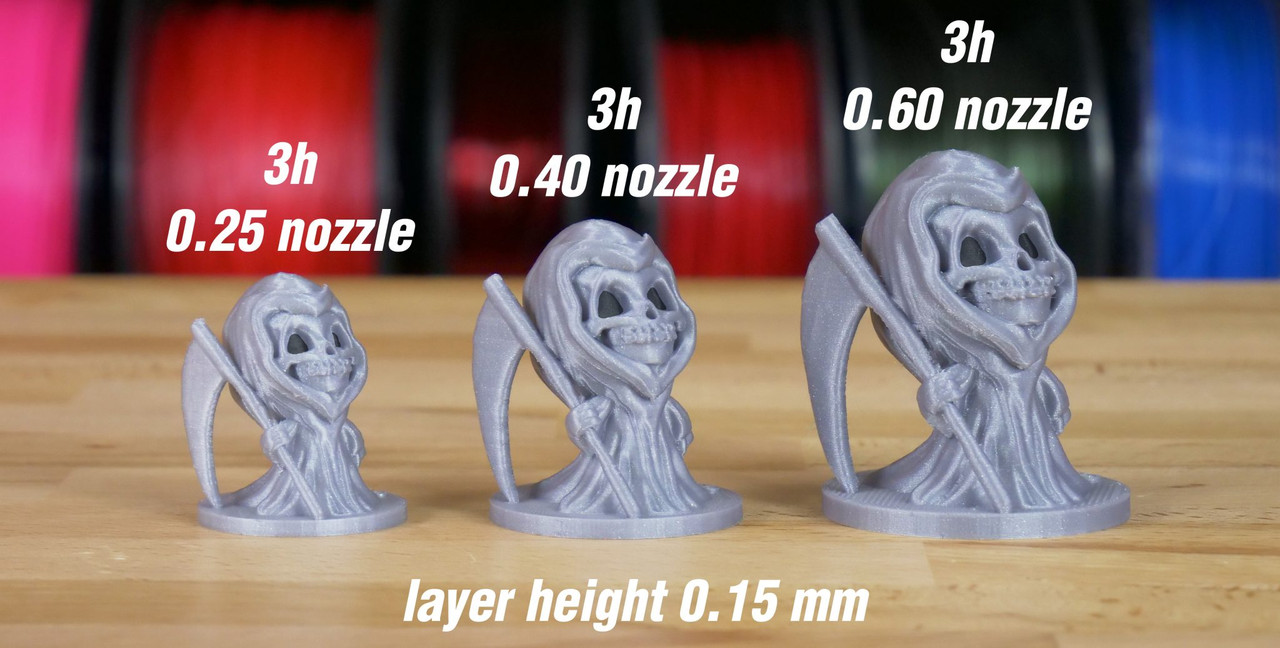

- Match Layer Height to Nozzle Size: Ensure the layer height is no more than 80% of your nozzle diameter. For example, if you’re using a 0.4mm nozzle, the maximum recommended layer height is 0.32mm.
- Calibrate Your Printer: Proper calibration is essential for achieving good results, especially with finer layer heights. Bed leveling and proper extruder settings can make or break a print.
- Consider the Model’s Purpose: For aesthetic models, prioritize finer layer heights. For functional prototypes, use thicker layers to reduce print time and improve strength.
7. Conclusion
Layer height is a critical factor that influences not only the appearance of your prints but also their strength and speed. Fine layers are perfect for high-detail models but come with the trade-off of longer print times, while thicker layers speed up prints and enhance strength. By understanding the pros and cons of different layer heights and tailoring them to your specific project needs, you can optimize your prints for the best possible results.
